Lithium Thionyl Chloride (Li-SOCl2) Battery

Key Characteristic

High and stable operating voltage

Low self-discharge rate （less than 1% after 1 year storage at 25 ℃)

Operating temperature（-55℃+85℃）

Hermetically glass-to-metal sealing

Non -flammable electrolyte

Bobbin type

UL, UN38.3 Approved

ISO9001 certified company

Dimension(max.) AA size/14.5*50.5mm

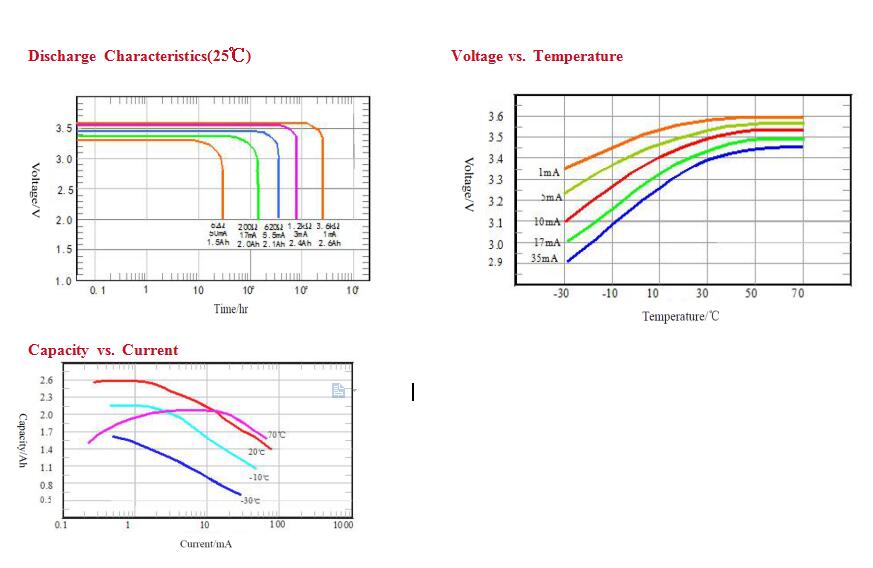

Characteristic

Nominal capacity（1mA-2.0v)....................2600mA

Nominal voltage...........................................3.6v

Max. constant current....................................50mA

Max. pulse current.........................................100mA

Weight..........................................................19g

Volume.........................................................Φ14.5*50.5mm

Workable temperature ................................-55℃+85℃

Main Applications

Utility meters (electronic meters, water mater, gas meters, AMR,

Security systems (door lockers, smoke alarm sensors detectors)

SMOS memory and RTC backup

Vehicle tracking

Industrial clocks

Sea buoys, remote monitoring systems, industrial clocks

Military electronics

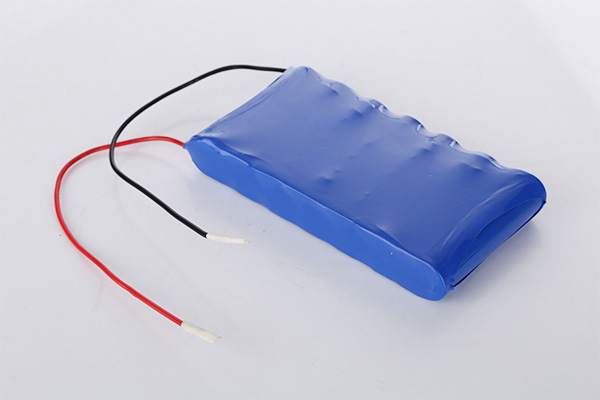

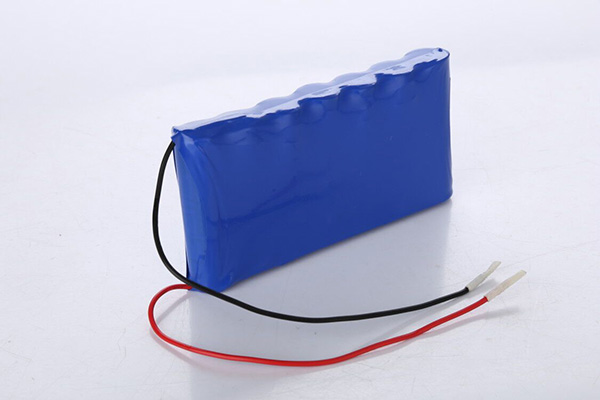

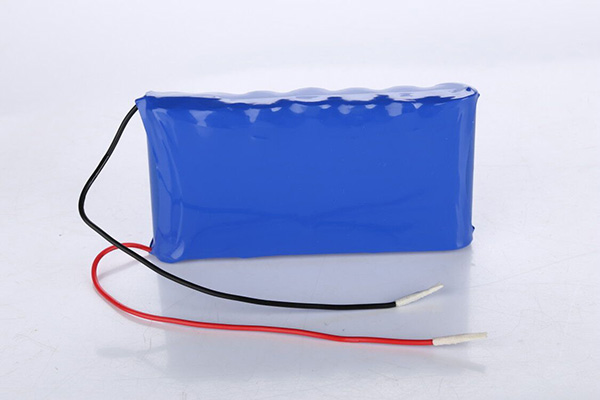

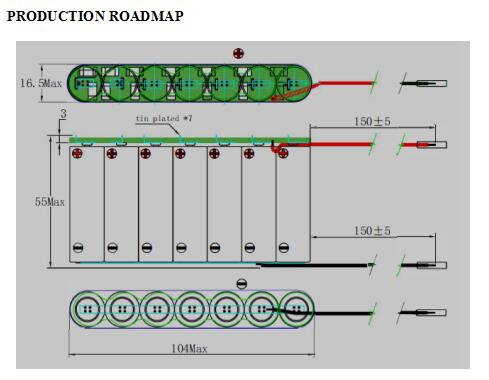

Name                                              Spec                                        Size                                       Unit

Cell                                                 RE14505                                Φ14.5*50.5mm                      7pcs

Red wire (TIN)                                UL1007-22#                            180mm                                  1pcs

Black wire (TIN)                             UL1007-22#                           170mm                                  1pcs

Silicone hoseUY-2                        Φ0.9mm                                   12mm                                    2pcs

Anode Nickel Belt                        Electroplated nickel coating     3*0.1                                     7pcs

Cathode Connect Nickel belt        Electroplated nickel Coating    3*0.1                                     1pcs

Circuit Board                                 E145-7104 FXN                       100*15*4                              1pcs

Remarks:  Before coating the battery that be dipped with Conformal Coating, Open circuit voltage≥3.64v. Load voltage(165Ω)≥3.3v(Voltage drop with circuit board)
